Show local image on plane

Description

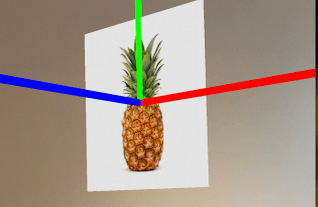

We will show a local image on a plane. This is one of the most fun things to do.

It's worth noting that you can specify different colours or images for each side of the plane.


Video

No video yet


Code

using ARKit;
using SceneKit;
using System;
using UIKit;

namespace XamarinArkitSample
{
    public partial class ViewController : UIViewController
    {
        private readonly ARSCNView sceneView;

        public ViewController(IntPtr handle) : base(handle)
        {
            this.sceneView = new ARSCNView
            {
                AutoenablesDefaultLighting = true,
                DebugOptions = ARSCNDebugOptions.ShowWorldOrigin
            };

            this.View.AddSubview(this.sceneView);
        }

        public override void ViewDidLoad()
        {
            base.ViewDidLoad();

            this.sceneView.Frame = this.View.Frame;
        }

        public override void ViewDidAppear(bool animated)
        {
            base.ViewDidAppear(animated);

            this.sceneView.Session.Run(new ARWorldTrackingConfiguration
            {
                AutoFocusEnabled = true,
                PlaneDetection = ARPlaneDetection.Horizontal,
                LightEstimationEnabled = true,
                WorldAlignment = ARWorldAlignment.GravityAndHeading
            }, ARSessionRunOptions.ResetTracking | ARSessionRunOptions.RemoveExistingAnchors);

            // Lesson: Add image to plane
            var width = 0.1f;
            var length = 0.1f;

            var image = UIImage.FromFile("Images/pineapple.jpg");

            var material = new SCNMaterial();
            material.Diffuse.Contents = image;
            material.DoubleSided = true;

            var geometry = SCNPlane.Create(width, length);
            geometry.Materials = new[] { material };

            var rootNode = new SCNNode();
            rootNode.Geometry = geometry;

            this.sceneView.Scene.RootNode.AddChildNode(rootNode);
        }

        public override void ViewDidDisappear(bool animated)
        {
            base.ViewDidDisappear(animated);

            this.sceneView.Session.Pause();
        }

        public override void DidReceiveMemoryWarning()
        {
            base.DidReceiveMemoryWarning();
        }
    }
}

Next Step : Show online image on plane

After you have mastered this you should try Show online image on plane
