Vertical items from business card

Description

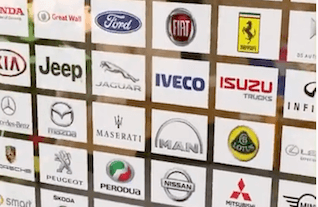

In this lesson we are detecting an image, then putting some tiled images vertically above / perpendicular to it.

Video

Code

using ARKit;
using SceneKit;
using System;
using System.Linq;
using UIKit;
using XamarinArkitSample.Code;

namespace XamarinArkitSample
{
    public partial class ViewController : UIViewController
    {
        private readonly ARSCNView sceneView;

        public ViewController(IntPtr handle) : base(handle)
        {
            this.sceneView = new ARSCNView
            {
                AutoenablesDefaultLighting = true,
                Delegate = new SceneViewDelegate()
            };

            this.View.AddSubview(this.sceneView);
        }

        public override void ViewDidLoad()
        {
            base.ViewDidLoad();

            this.sceneView.Frame = this.View.Frame;
        }

        public override void ViewDidAppear(bool animated)
        {
            base.ViewDidAppear(animated);

            var detectionImages = ARReferenceImage.GetReferenceImagesInGroup("AR Resources", null);

            this.sceneView.Session.Run(new ARWorldTrackingConfiguration
            {
                AutoFocusEnabled = true,
                PlaneDetection = ARPlaneDetection.Horizontal | ARPlaneDetection.Vertical,
                LightEstimationEnabled = true,
                WorldAlignment = ARWorldAlignment.GravityAndHeading,
                DetectionImages = detectionImages,
                MaximumNumberOfTrackedImages = 10

            }, ARSessionRunOptions.ResetTracking | ARSessionRunOptions.RemoveExistingAnchors);
        }

        public override void ViewDidDisappear(bool animated)
        {
            base.ViewDidDisappear(animated);

            this.sceneView.Session.Pause();
        }

        public override void DidReceiveMemoryWarning()
        {
            base.DidReceiveMemoryWarning();
        }
    }

    public class SceneViewDelegate : ARSCNViewDelegate
    {
        public override void DidAddNode(ISCNSceneRenderer renderer, SCNNode node, ARAnchor anchor)
        {
            if (anchor is ARImageAnchor imageAnchor)
            {
                var scnNode = new SCNNode();
                scnNode.Position = new SCNVector3(0, 0.1f, -0.5f);
                node.AddChildNode(scnNode);

                var detectedImage = imageAnchor.ReferenceImage;

                var manufacturers = Manufacturers.GetManufacturers().OrderByDescending(m => m.Name).ToArray();

                var rows = 8;
                var columns = 8;
                var planeWidth = 0.08f;
                var planeHeight = 0.06f;
                var margin = 0.01f;

                int count = 0;
                int total = 64;

                var startingX = -0.4f;
                var startingY = 0.06f;
                var startingZ = -0.03f;

                for (int row = 0; row < rows; row++)
                {
                    for (int column = 0; column < columns; column++)
                    {
                        float x = startingX + (planeWidth * column) + (column * margin);
                        float y = startingY + (planeHeight * row) + (row * margin);
                        float z = startingZ;

                        var position = new SCNVector3(x, y, z);

                        var planeNode = new PlaneNode(planeWidth, planeHeight, position, manufacturers[count].ImagePath);

                        planeNode.Opacity = 0.9f;

                        node.AddChildNode(planeNode);

                        if (column == 16)
                        {
                            column = 0;
                            row++;
                        }

                        count++;
                    }
                }
            }
        }

        public override void DidRemoveNode(ISCNSceneRenderer renderer, SCNNode node, ARAnchor anchor)
        {
            if (anchor is ARPlaneAnchor planeAnchor)
            {
            }
        }

        public override void DidUpdateNode(ISCNSceneRenderer renderer, SCNNode node, ARAnchor anchor)
        {
            if (anchor is ARPlaneAnchor planeAnchor)
            {
            }
        }
    }

    public class PlaneNode : SCNNode
    {
        public PlaneNode(nfloat width, nfloat length, SCNVector3 position, string imageUrl)
        {
            var rootNode = new SCNNode
            {
                Geometry = CreateGeometry(width, length, imageUrl),
                Position = position
            };

            AddChildNode(rootNode);
        }

        private static SCNGeometry CreateGeometry(nfloat width, nfloat length, string imageUrl)
        {
            var material = new SCNMaterial();

            if (!string.IsNullOrEmpty(imageUrl))
            {
                var image = UIImage.FromFile(imageUrl);
                material.Diffuse.Contents = image;
            }
            else
            {
                material.Diffuse.Contents = UIColor.Red;
            }

            material.DoubleSided = true;

            var geometry = SCNPlane.Create(width, length);
            geometry.Materials = new[] { material };

            var rootNode = new SCNNode();
            rootNode.Geometry = geometry;

            return geometry;
        }
    }
}
